BULLSEYE NIGHT HAWK RANGE

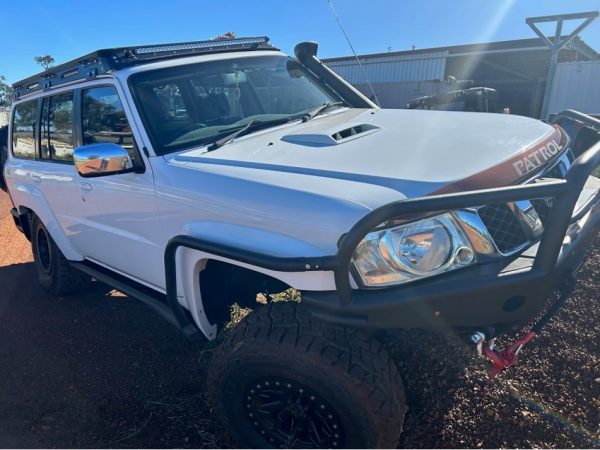

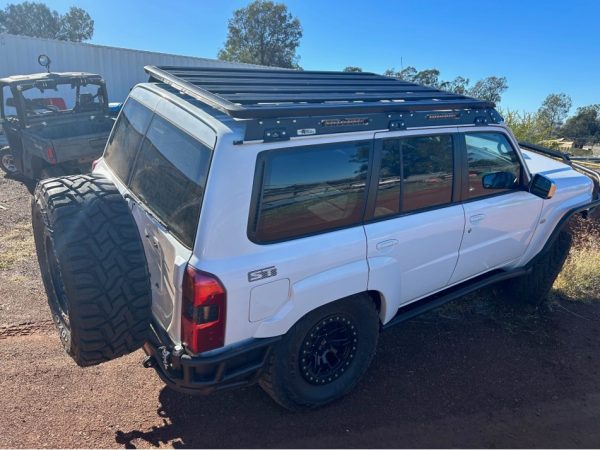

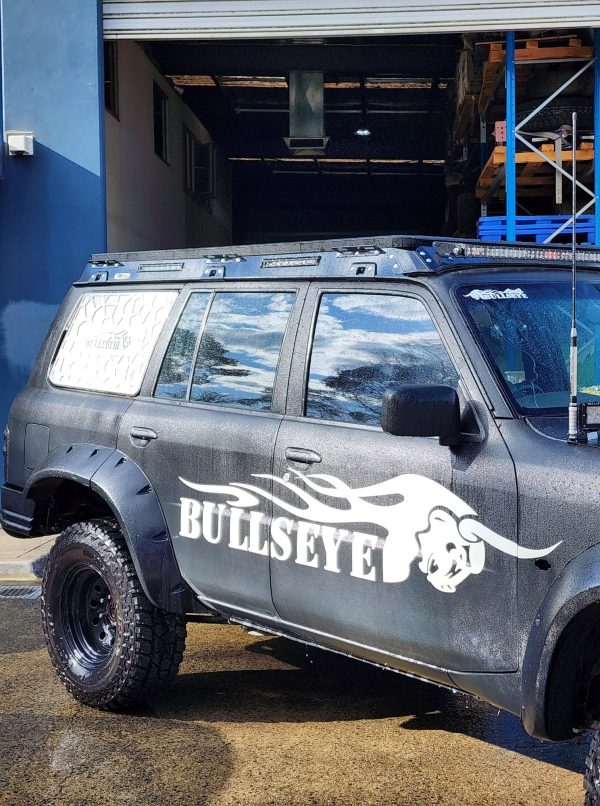

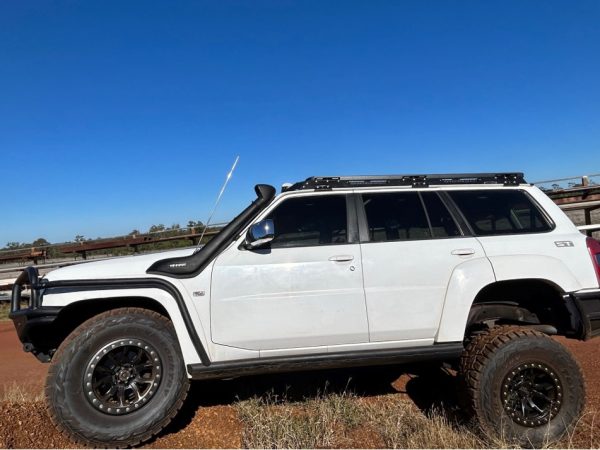

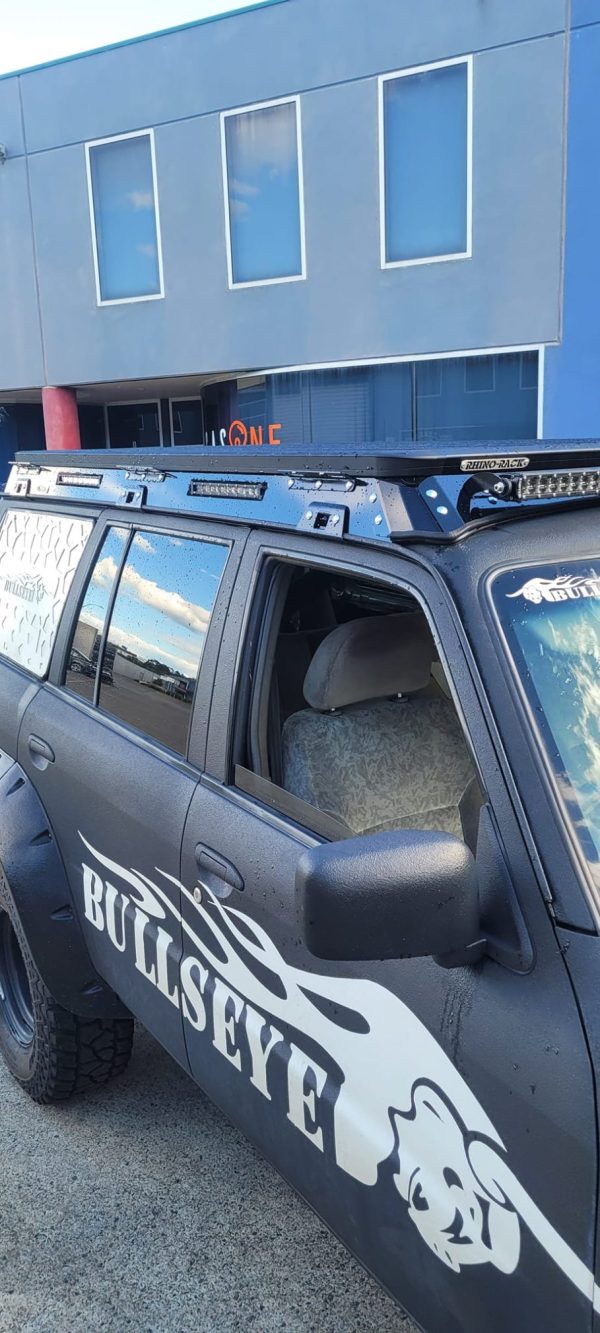

Nissan GU Patrol 2200mm Low Profile Backbone system
The Nissan Patrol GU 2200 Backbone System is here! This isn’t about just a backbone system to fit your roof rack, Bullseye wanted to create something unique and exciting. This backbone system will have you covered DAY and NIGHT with built in Lightbars, Multiple tie down points and an Ultra Low Profile!

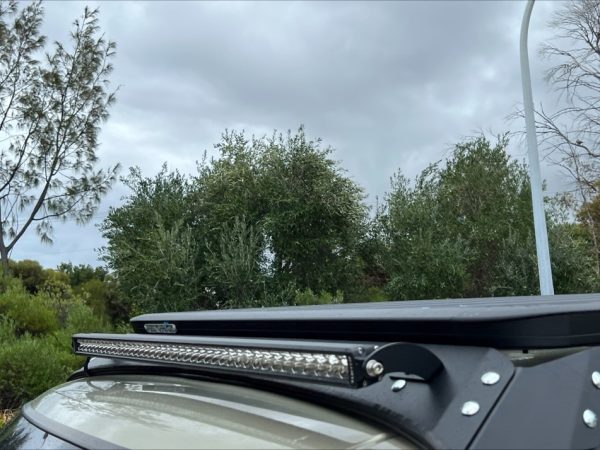

One of the standout features of this system is the exclusive inclusion of 2 x 13.5″ Ultra Slim LED Light bars on each side of the backbone rails. These high-performance LED lights not only enhance the aesthetics of your vehicle but also provide exceptional visibility during night-time adventures. Illuminate your path with confidence, knowing that Bullseye Products brings you cutting-edge technology exclusive to this back bone system!

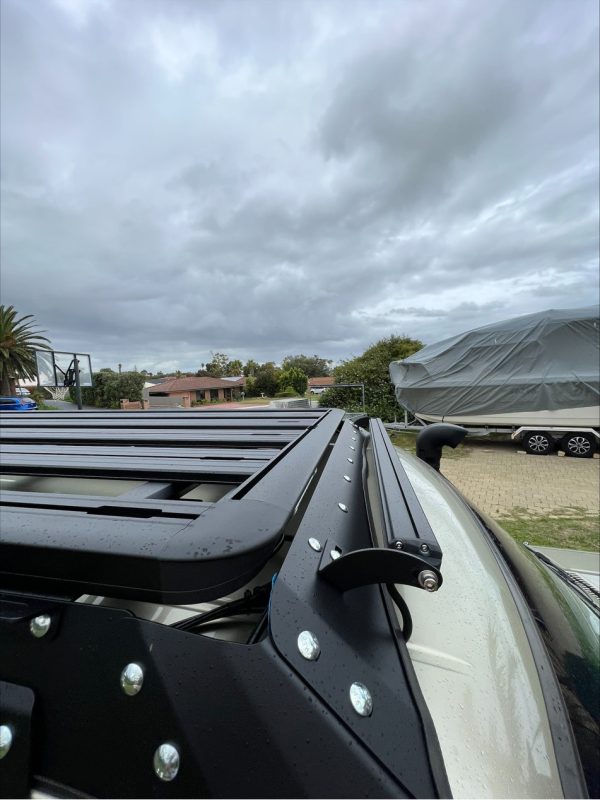

The Nissan Patrol GU, with its distinct gutter line along the roof, provides an ideal foundation for securely attaching the Bullseye Products Back Bone System. The system utilizes specialized clamps designed to anchor the backbone rails to the vehicle’s gutters, ensuring a stable and reliable connection.
Included in the package are six purpose-built brackets designed to bolt directly onto the side rails of the back bone system. These brackets serve as invaluable tie-down points, offering users a convenient and secure solution for strapping down various items onto their roof racks.
Load Rating is based on the Platform that you mount to. We have based our backbone system design on the Rhino Rack Pioneer Platform, however this system will work with any Roof Rack with adjustable mounting points. The Wind Deflector has been designed to take the weight of extra accessories such as spotlights, lightbars, pod lights, aerials, the choice is yours!
The roof rack back bone system will fit an 2128mm x 1236mm roof rack with adjustable mounting points. (Roof Rack NOT INLUDED)
- Simple assembly with a few basic tools and supplied hardware.
- Compatible with any brand of roof rack that has adjustable mounting points
- Installation will take approx. 4 hours
The Lengths and Height:
2160mm Length without Wind Deflector
2280mm Length with Wind Deflector
65mm height off the roof at the highest point
The Night Hawk Range 2200mm Back Bones
Side Rails:
- 2 x Side Rail Backbones – Left & Right
- 6 x Tie down points
- 6 x Side Rail Clamps
- 6 x Roof Rack mounting plates – 3 Left & 3 Right
- A Bolt Pack for the Side Rails and Clamps
- 4 x 13.5″ Ultra Slim Single Row LED Light bars
- Light Bar mounts for the 13.5″ LED Light bars and a Bolt Pack.
Wind Deflector:
- 1 x Wind Deflector
- 2 x Wind Deflector Mounts
- 1 x Wind Deflector Brace
- Bolt pack for Wind Deflector and Brace
- L-Shaped Light Bar mounts for any use Light Bars
- 5w Cree Led
- Beam: Spot
- Operating Voltage: 10-30v Dc
- Waterproof Rate: Ip 68
- Colour Temperature: 6000k
- 50,000 Hrs
- Material: Diecast Aluminium Housing
- Lens Material: Pc
- Lumen 3,600
- LED Chip: OSRAM P8 Single row / straight
- Power: 200w – 40pcs*5w
- Size: 42″ Voltage:9-32V DC
- Color temperature: 6500K
- Housing Color: Black
- Optional Beam type: Combo beam Material: Aluminum housing, PC lens, Stainless steel bracket
- Lifespan: 30,000 hours
- Work Temperature: -40~85℃
Standards: CE ROHS IP68
DT Wiring Loom – Four Way Piggy Back (Solid vs Sheathed)
Feature | Solid Cable | Sheathed Cable |
| Main Cable Length | 2.5 metres | 2.0 metres |
| Cable Type | Solid-core (rigid) | Sheathed (flexible) |
| Best For | Visible, neat installs | Tight or hidden spaces |
| Routing from Roof to Bonnet | Yes | Yes |
| A-Pillar Silicone Application | Excellent – holds shape | Poor – creases easily |
| Branch Lengths to Lights | 4 x 0.5 metres | 4 x 0.5 metres |
| Connector Type | Male DT plugs (x4) | Male DT plugs (x4) |
| Voltage Compatibility | 12V & 24V | 12V & 24V |
| Appearance When Installed | Clean and professional | May sag or bend |
