Nissan Patrol GU 1800mm Roof Rack Backbones Mounting Systems – Night Hawk Range

BULLSEYE NIGHT HAWK RANGE

You must select the Side Rails as they are the Backbones themselves. The Wind Deflector and Light bar are only additional options!

This is one of the lowest profile backbone on the market and with our gutter mounted system, it’s easy to install with no drilling into your vehicle required.

Team this up with the 4 way Piggy Back adaptor and DT Wiring Loom to wire you lights for the road!

$32.00$800.00 *Inc GST

$800.00 *Inc GST

In stock

$275.00 *Inc GST

In stock

$380.00 *Inc GST

In stock

$32.00 *Inc GST

In stock

$40.00 *Inc GST

In stock

BULLSEYE NIGHT HAWK RANGE

Nissan Patrol GU 1800mm Low Profile Backbone system



The Nissan Patrol GU 1800 Backbone System is here! This isn’t about just a backbone system to fit your roof rack, Bullseye wanted to create something unique and exciting. This backbone system will have you covered DAY and NIGHT with built in Lightbars, Multiple tie down points and an Ultra Low Profile!

A backbone that has 4 LED lightbars built in for 180 degree vision, you won’t believe you’ve gone without it for so long. The tie down points allow you to secure your load but also affix other 4×4 accessories.

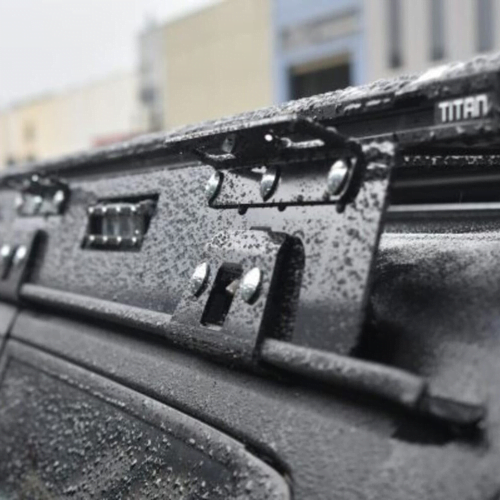

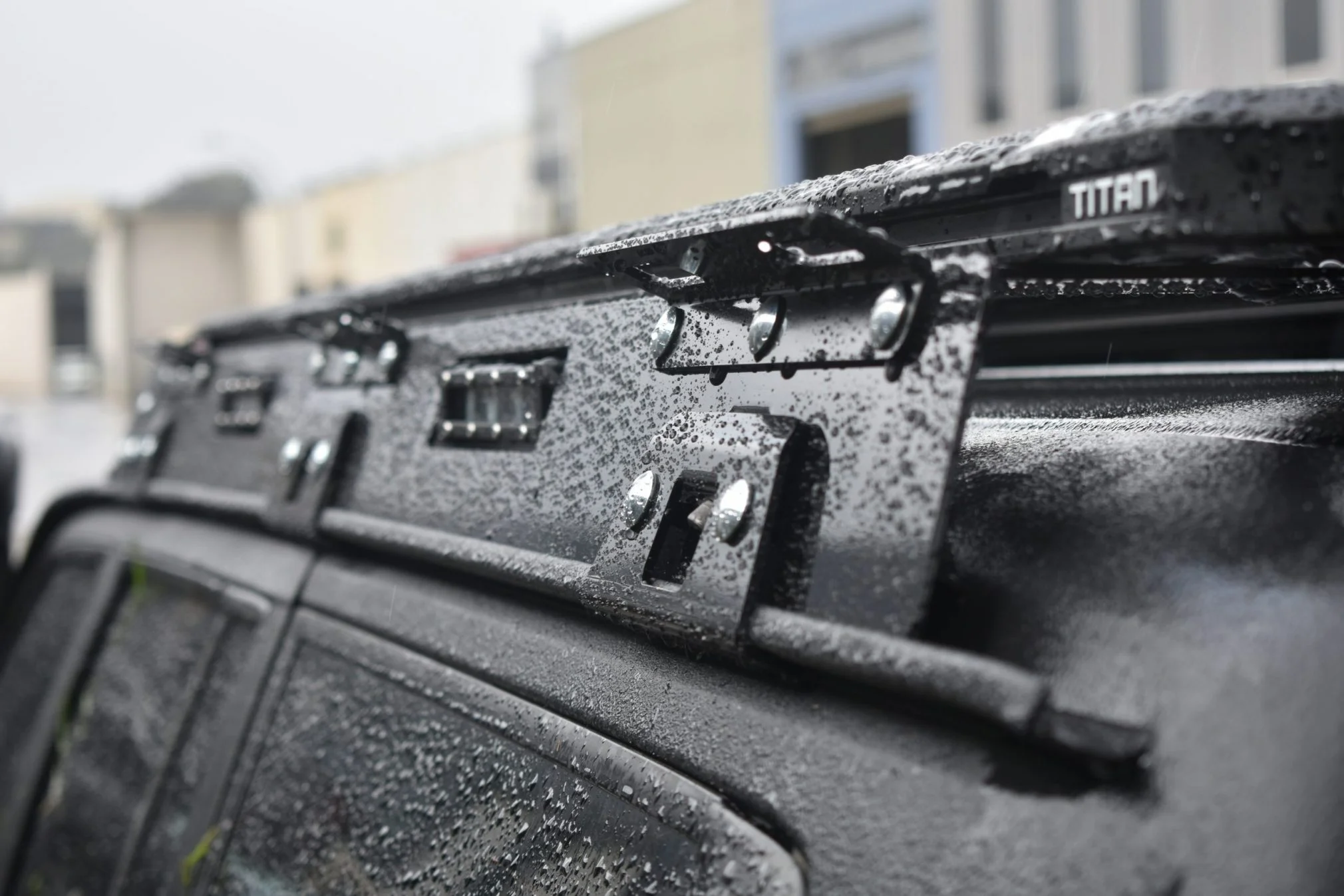

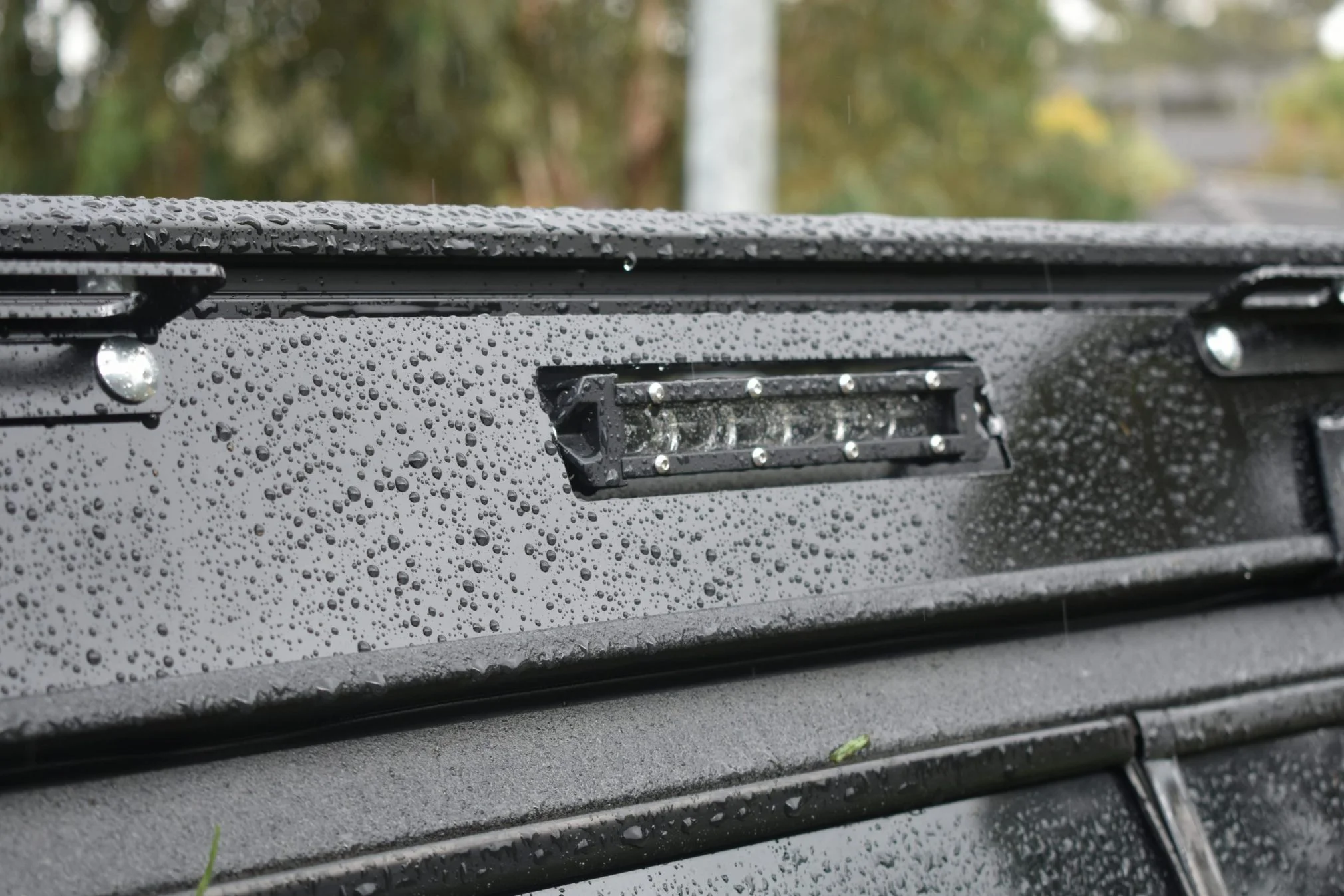

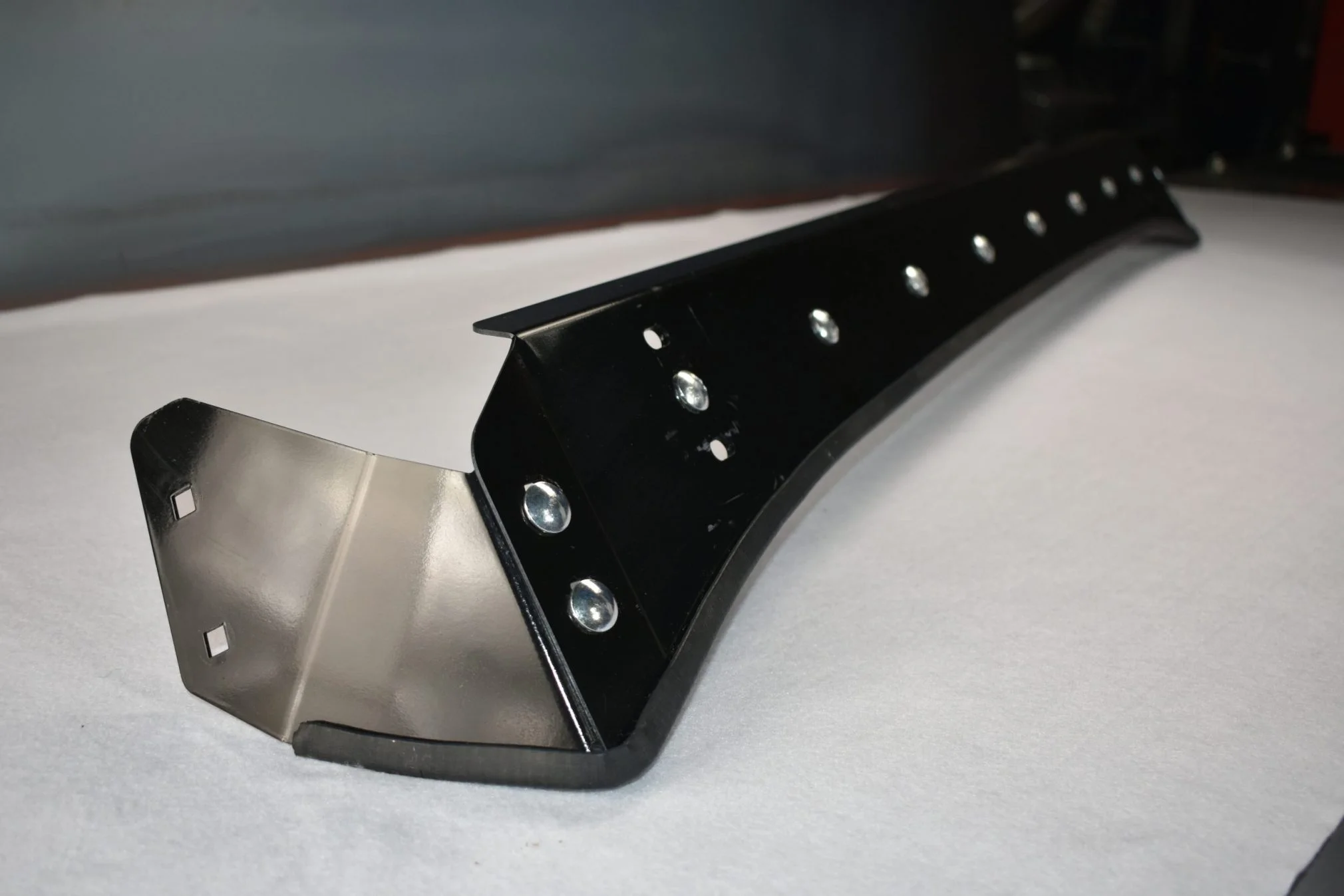

The 1800 Back Bone mounts directly to your vehicle through existing mounting points, making it an easy installation that is sound and strong. The side rails have 4 X 7.5″ Ultra Slim light bars built in, we wanted this backbone to mount as low as possible, sitting 65mm above the roof line at the highest point. We have also added 6 tie down points to ensures your load is secure at all times.

Load Rating is based on the Platform that you mount to. We have based our backbone system design on the Rola MKIII Titan Tray 1800 x 1200mm roof rack, however this system will work with any Roof Rack with adjustable mounting points. The Wind Deflector has been designed to take the weight of extra accessories such as spotlights, lightbars, pod lights, aerials, the choice is yours!

The roof rack back bone system will fit an 1800mm x 1236mm roof rack with adjustable mounting points. (Roof Rack NOT INLUDED)

  • Simple assembly with a few basic tools and supplied hardware.
  • Compatible with any brand of roof rack that has adjustable mounting points
  • Installation will take approx. 4 hours

The Specs:

1790mm Length without Wind Deflector

1820mm Length with Wind Deflector

65mm height off the roof at the highest point

The Night Hawk Range 1800mm Back Bones

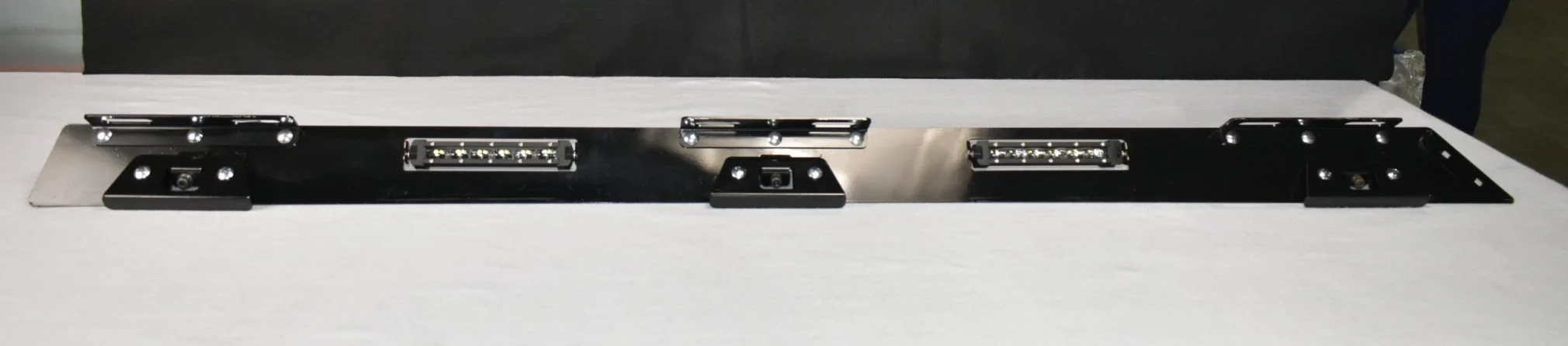

Side Rails:
  • 2 x Side Rail Backbones – Left & Right
  • 6 x Tie down points
  • 6 x Side Rail Clamps
  • 6 x Roof Rack mounting plates – 3 Left & 3 Right
  • A Bolt Pack for the Side Rails and Clamps
  • 4 x 7.5″ Ultra Slim Single Row LED Light bars
  • Light Bar mounts for the 7.5″ LED Light bars and a Bolt Pack.
Wind Deflector:
  • 1 x Wind Deflector
  • 2 x Wind Deflector Mounts
  • 1 x Wind Deflector Brace
  • Bolt pack for Wind Deflector and Brace
  • L-Shaped Light Bar mounts for any use Light Bars

7.5” 4D Ultra Slim Single Row 60w Light Bar

  • 5w Cree Led
  • Beam: Spot
  • Operating Voltage: 10-30v Dc
  • Waterproof Rate: Ip 68
  • Colour Temperature: 6000k
  • 50,000 Hrs
  • Material: Diecast Aluminium Housing
  • Lens Material: Pc
  • Lumen 3,600

42″ Vivid Series MKII Single Row Straight LED Light Bar

  • LED Chip: OSRAM P8 Single row / straight
  • Power: 200w – 40pcs*5w
  • Size: 42″ Voltage:9-32V DC
  • Color temperature: 6500K
  • Housing Color: Black
  • Optional Beam type: Combo beam Material: Aluminum housing, PC lens, Stainless steel bracket
  • Lifespan: 30,000 hours
  • Work Temperature: -40~85℃
    Standards: CE ROHS IP68
